| Place of Origin: | China |
|---|---|
| Brand Name: | PioneerTEX |
| Certification: | ISO9001 and ISO14001 |
| Model Number: | PP105 |
| Minimum Order Quantity: | 500 sqm |
| Price: | 500-1500 US$/Unit |
| Packaging Details: | PP Woven fabric outside |
| Delivery Time: | 2-3weeks |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000SQM/DAY |
| Quantity: | |
|---|---|
| Yarn Material: | PP Or PET Multifilament | Color: | White |
|---|---|---|---|
| Strength Of Geotextile: | 105-105KN/M | Bag Size: | Made To Order |
| Fabric Weight: | 450gsm | Seaming: | Circular Seaming In The Circumference Of Bag |
| High Light: | Coastal Protection Geocontainers,Coastal Protection Geotube,geosynthetic Protection Geo Bags | ||
PP 105-105 Multifilament Woven Geotextile Bag/Geobag/Geotube/ Geocontainer for coastal protection,shoreline embankment
PIONEERTEX Geotube & Geobag Product List are as below:
Who are we?
We, PioneerTEX is a professional manufacturer of woven and nonwoven geotextile, geotube,geobag and dewatering jumbo bag in China.
Our geotextile is different from other normal standard fabric. It is designed for dewatering with high flow and small pore size.
Apparant opening size and tensile strength of geotextile could be customized.
Bag size is depend on customer's request.
We can produce according to the client's drawing.

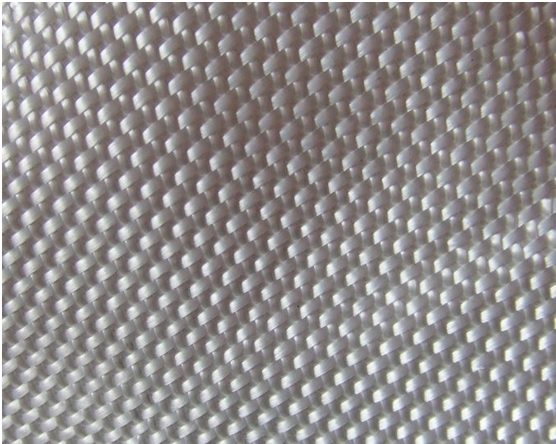

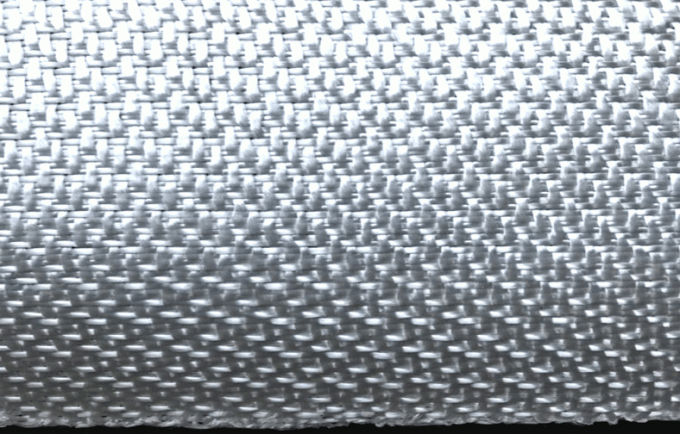

450g/m2 PET Multifilament Woven Geotextine in Special twill construction for dewatering:

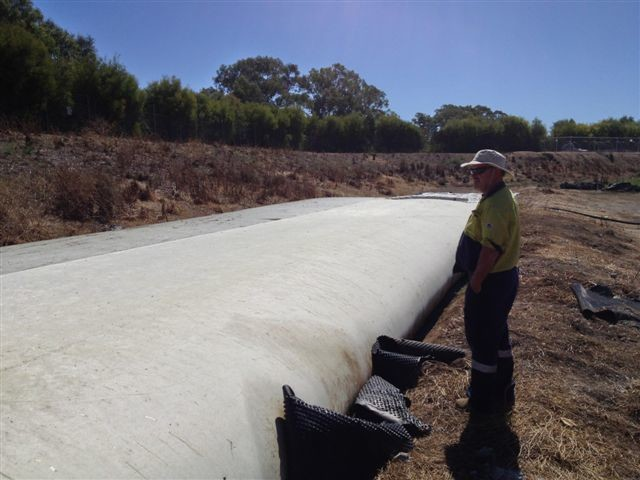

What is a Geotube?
PioneerTEX GeoTube (PioTube) dewatering bag is a containment system designed for dewatering a wide variety of sludge types and sands.
It is integrated with single or multiple pieces of PioneerTEX's high-strength synthetic technical fabric and is theoretically applicable to diverse dimensions.
How do a PioneerTEX Geotube work?
Gravimetric drainage of the sludge is accompanied by a volume reduction.
Due to the special opening size of the geotextile fabric used to form the tube, the solid components of sludge are captured inside the tube whereas the water can escape from the geo-tube.
Is Polymer Flocculant Necessary for Dewatering?
Normally, tt is necessary to add polymer flocculant for dewatering, which should be added to the slurry before pumping it into the tube.
The purpose of the polymer additives is to flocculate the fines, and to increase the dewatering efficiency.
Can we do a trial on the geotube before purchasing?
Yes, of course! We will make one small model bag for your trial. Small Geotube size is 50cmX50cm.
Based on the results of preliminary field testing with small PioTube,the appropriate amount of additives can be defined.
What is GT500M geotube?
PioneerTex Dewatering Breakwater Geotube-PioTube GT600 was designed and developed for sea shoreline protection project or embankment. It was made of PP multifilament yarn. And its flow rate is also good because of special fabric structure. Since its fabric weight is less than standard GT1000 fabric, Max. Filling height of geotube is not more than 2.2mts.
| Mechanical Properties | Test Method | Unit | TYPICAL | |
| MD | XD | |||
| Tensile Strength | ASTM D 4595 | KN/M | 105 | 105 |
| Elongation at break | ASTM D 4595 | % | 25 | 25 |
| Seam Strength | ASTM D 4884 | KN/M | 60 | |
| CBR Puncture Strength | ASTM D 6241 | KN | 8 | |
| Hydraulic Poperties | Test Method | Unit | TYPICAL | |
| Opening Size(AOS) | ASTM D 4751 | mm | 0.1-0.2 | |
| Flow Rate | ASTM D 4491 | l/min/m2 | 450 | |
| Anti-UV(500hours) | ASTM D 4355 | % | 85 | |
| Physical Properties | Test Method | Unit | TYPICAL | |
| Mass Per Unti Area | ASTM D5261 | G/M2 | 450 | |
| Thickness | ASTM D5199 | mm | 1 | |

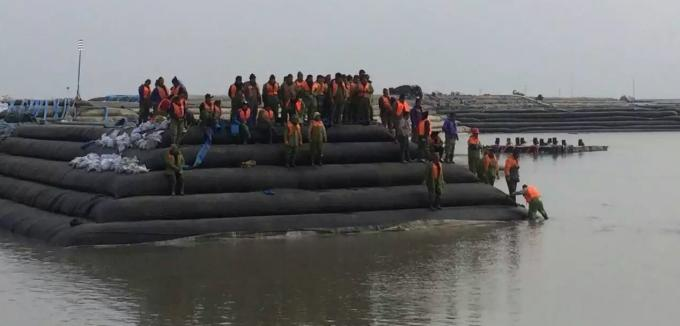

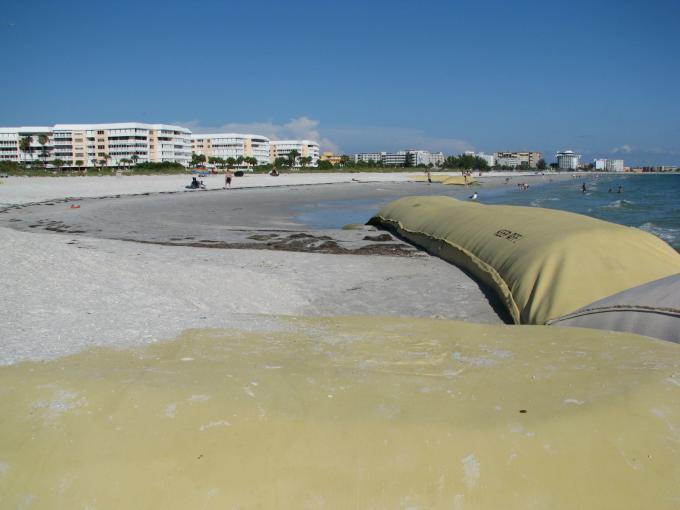

Application:
Costal Protection
Shoreline Protection
Large Sand Bag
| Yarn Material: | PP Or PET Multifilament | Color: | White |
|---|---|---|---|
| Strength Of Geotextile: | 105-105KN/M | Bag Size: | Made To Order |
| Fabric Weight: | 450gsm | Seaming: | Circular Seaming In The Circumference Of Bag |
| High Light: | Coastal Protection Geocontainers,Coastal Protection Geotube,geosynthetic Protection Geo Bags | ||
PP 105-105 Multifilament Woven Geotextile Bag/Geobag/Geotube/ Geocontainer for coastal protection,shoreline embankment
PIONEERTEX Geotube & Geobag Product List are as below:
Who are we?
We, PioneerTEX is a professional manufacturer of woven and nonwoven geotextile, geotube,geobag and dewatering jumbo bag in China.
Our geotextile is different from other normal standard fabric. It is designed for dewatering with high flow and small pore size.
Apparant opening size and tensile strength of geotextile could be customized.
Bag size is depend on customer's request.
We can produce according to the client's drawing.
450g/m2 PET Multifilament Woven Geotextine in Special twill construction for dewatering:
What is a Geotube?
PioneerTEX GeoTube (PioTube) dewatering bag is a containment system designed for dewatering a wide variety of sludge types and sands.
It is integrated with single or multiple pieces of PioneerTEX's high-strength synthetic technical fabric and is theoretically applicable to diverse dimensions.
How do a PioneerTEX Geotube work?
Gravimetric drainage of the sludge is accompanied by a volume reduction.
Due to the special opening size of the geotextile fabric used to form the tube, the solid components of sludge are captured inside the tube whereas the water can escape from the geo-tube.
Is Polymer Flocculant Necessary for Dewatering?
Normally, tt is necessary to add polymer flocculant for dewatering, which should be added to the slurry before pumping it into the tube.
The purpose of the polymer additives is to flocculate the fines, and to increase the dewatering efficiency.
Can we do a trial on the geotube before purchasing?
Yes, of course! We will make one small model bag for your trial. Small Geotube size is 50cmX50cm.
Based on the results of preliminary field testing with small PioTube,the appropriate amount of additives can be defined.
What is GT500M geotube?
PioneerTex Dewatering Breakwater Geotube-PioTube GT600 was designed and developed for sea shoreline protection project or embankment. It was made of PP multifilament yarn. And its flow rate is also good because of special fabric structure. Since its fabric weight is less than standard GT1000 fabric, Max. Filling height of geotube is not more than 2.2mts.
| Mechanical Properties | Test Method | Unit | TYPICAL | |
| MD | XD | |||
| Tensile Strength | ASTM D 4595 | KN/M | 105 | 105 |
| Elongation at break | ASTM D 4595 | % | 25 | 25 |
| Seam Strength | ASTM D 4884 | KN/M | 60 | |
| CBR Puncture Strength | ASTM D 6241 | KN | 8 | |
| Hydraulic Poperties | Test Method | Unit | TYPICAL | |
| Opening Size(AOS) | ASTM D 4751 | mm | 0.1-0.2 | |
| Flow Rate | ASTM D 4491 | l/min/m2 | 450 | |
| Anti-UV(500hours) | ASTM D 4355 | % | 85 | |
| Physical Properties | Test Method | Unit | TYPICAL | |
| Mass Per Unti Area | ASTM D5261 | G/M2 | 450 | |
| Thickness | ASTM D5199 | mm | 1 | |
Application:
Costal Protection
Shoreline Protection
Large Sand Bag
