| Place of Origin: | CHINA |
|---|---|
| Brand Name: | PIONEERTEX |
| Certification: | ISO 9001 |
| Model Number: | ECB-STANDARD |
| Minimum Order Quantity: | 2000 SQM |
| Price: | 0.87 US$/SQM-1.82US$/SQM |
| Packaging Details: | PP WOVEN FABRIC PACKAGING OUTSIDE |
| Delivery Time: | 1-2WKS |
| Payment Terms: | T/T |
| Supply Ability: | 50000SQM/MONTH |
| Quantity: | |
|---|---|
PIONEERTEX
| Name: | Organic Quick Grass Coconut Fiber Erosion Control Blanket | Material: | Coconut Fiber And PP Plastic Net |
|---|---|---|---|
| Color: | Natural | Width: | 2.0 Or 2.5mts |
| Length: | 40-50mts Per Roll | Weight: | 200g/m2 |
| High Light: | Coconut Fiber Erosion Control Blanket,Coconut Matting Erosion Control,Biodegradable Erosion Control Blanket | ||

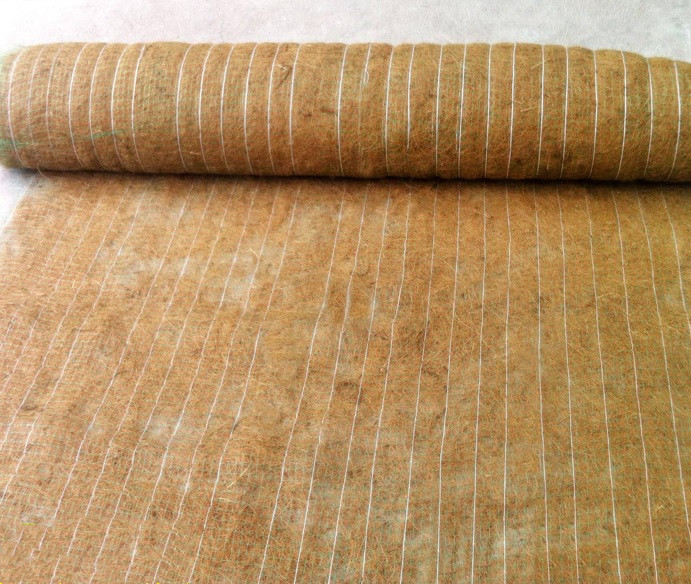

COCONUT FIBER EROSION CONTROL BLANKET TO GROW GRASS FOR SLOPE RPOTECTION
EROSION CONTROL BLANKET (ECB) INTRODUCTION:

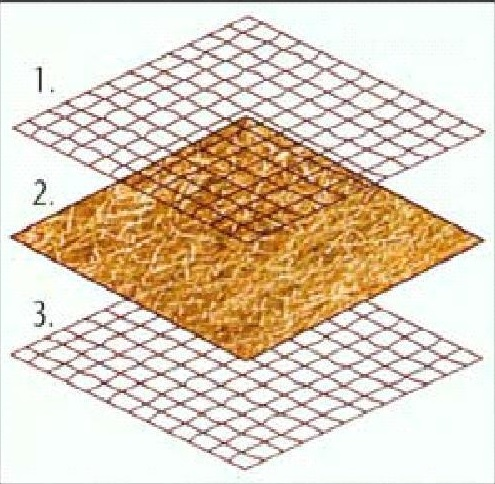

It is a integrated geo-composite structure which composited fiber fabric, nonwoven layer and plastic grid etc. This product is a new type of maintenance material used for ecological slope protection, soil and water conservation to support the vegetation, and achieve the erosion control purpose. It’s really a good green solution to work with nature.
PRODUCT FEATURE:
1. Simple and fast construction
2. Achieve the greening effect quickly after construction
3. Composite fiber fabric is a continuous structure from slope top to slope toe, both ends are fixed, has high water flow resistance.
APPLICATION:

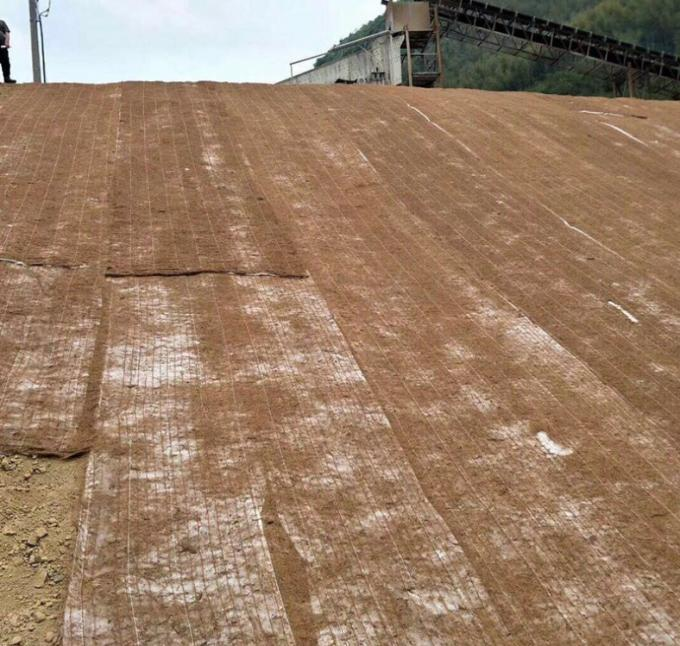

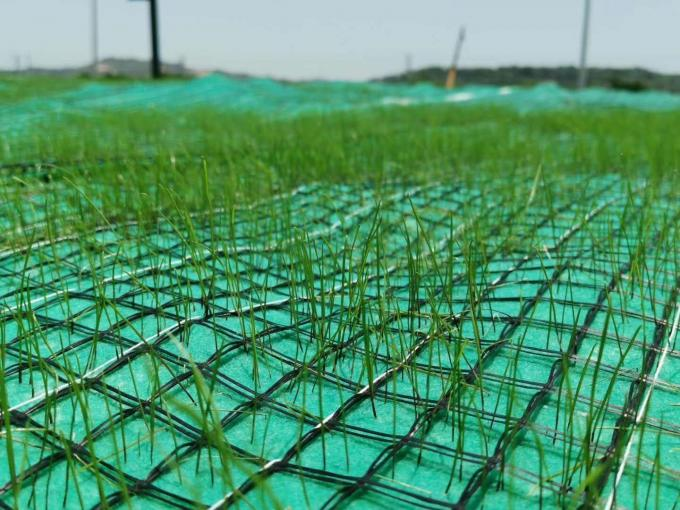

Generally laid on the river channel, slope protection etc. slope revetment projects, to control the water erosion, soil loss, meantime can reach the effect of slope ecological restoration and landscape greening, making river back to natural.
| PIONEERTEX TURF REINFORCEMENT MAT ( TRM) SPECIFICATION | |||||||
| Erosion Control Blanket For Vegetation Establishment | |||||||
| NO. | Items | Standard Type | Reinforcement Type | Anti-Scour Type | |||
| 1 | Total unit area weight (GSM) | ≥180 | >=200 | >=300 | |||
| 2 | dimension | width m | 1.0-2.0mts | ||||
| length m | 50mts/Roll | ||||||
| 3 | Composite Material | Grid Material Top | PE plastic grid 8*8 | Polyester Geogrid | Polyester Geogrid | ||
| Grid Material Bottom | PE plastic grid 8*8 | PE plastic grid 8*8 | PE plastic grid 8*8 | ||||
| fiber weight g/sq.m | 170 | 170 | 160gsm Coconut 100gsm Polyester | ||||
| Natural fiber in the middle | 100% Coconut, or belend some straw. | ||||||
| Tensile strengh kn/m | >=3 | >=30 | >=30 | ||||
| 8 | Anti-UV strengh conservation rate % | 65~80 3000hrs Continuously exposure 3000hrs | |||||
| 9 | Accessory parts | ABS fastening nail | Material | ABS Resin | Fixed between two blankets by length direction | ||
| Nail length mm | 325 | ||||||
| L Type nail | Material | Steel wire (content 10% zinc-aluminium alloy) | Used to fix single blanket | ||||
| Nail length mm | 200 | ||||||
| ABS connecting nail | Material | ABS Resin | Used in the slope between the two blankets ( width direction) | ||||
| Nail length mm | 38 | ||||||
