GT200 High flow rate PP Monofilament woven geotextile dewatering geobag with open top for waste water treatment

We, PioneerTEX is a professional manufacturer of geotube and geobag in China.

We could produce many types of geotube and geobag as per customer's project request.

All bags and fabrics could be customized.



PIONEERTEX Geotube & Geobag Product List are as below:



Quality Code	GT200	GT300	GT330D	GT400	GT500
Mass	270gsm BLACK	350gsm BLACK	350gsm BLACK	350gsm WHITE	580gsm BLACK
Yarn	PP Monofilament	PP Mono/Tape	PP Monofilament	PP Multifilament	PP Mono/Fabrillated
Tensile Strength (MD/CMD)	54/48	50/50	50/50	70/105	75/128
OPENING SIZE O95(mm)	0.5-0.7	0.3-0.5	0.6-0.8	0.1-0.2	0.3-0.5
Application	Dewatering Filter Jumbo Bag	Sludge Dewatering geotube	Sludge Dewatering geotube	Breakwater geotube Sludge dewatering	Sludge Dewatering Geotube
Quality Code	GT600	GT750	GT800	GT1000	Jumbo Sand Bag
Mass	600gsm WHITE	750gsm BLACK	850gsm BLACK	1300gsm BLACK	380gsm WHITE
Yarn	PP Multifilament	PP Mono/Fabrillated	PP Mono/Fabrillated	PP Mono/Fabrillated	PP Woven 230gsm /Nonwoven 150gsm
Tensile Strength (MD/CMD)	150/150	120/120	130/130	200/200	50/50
OPENING SIZE O95(mm)	0.1-0.2	0.3-0.5	0.3-0.5	0.4-0.6	0.1-0.2
Application	Breakwater Geotube	Breakwater Geotube	Breakwater Geotube	Breakwater Geotube	Breakwater geotube Anti-scour mattress
1. GT200 fabric can work as Dewatering Filter Jumbo Bag.
2. GT400 Geotube can work as Breakwater Geotube anchor tube;
3. GT500,GT600,GT750,GT800 and GT1000 Geotube can work as Breakwater Geotube for shoreline protection.





What is a Geotube?

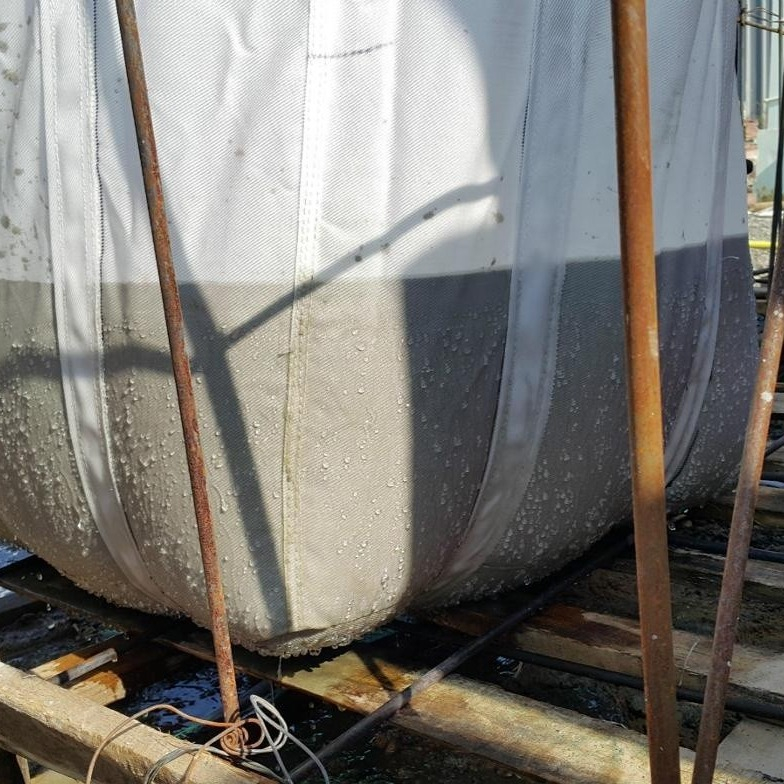

PioneerTEX GeoTube (PioTube) dewatering bag is a containment system designed for dewatering a wide variety of sludge types and sands.
It is integrated with single or multiple pieces of PioneerTEX's high-strength synthetic technical fabric and is theoretically applicable to diverse dimensions.



How do a PioneerTEX Geotube work?

Gravimetric drainage of the sludge is accompanied by a volume reduction.
Due to the special opening size of the geotextile fabric used to form the tube, the solid components of sludge are captured inside the tube whereas the water can escape from the geo-tube.



Is Polymer Flocculant Necessary for Dewatering?



Normally, tt is necessary to add polymer flocculant for dewatering, which should be added to the slurry before pumping it into the tube.
The purpose of the polymer additives is to flocculate the fines, and to increase the dewatering efficiency.



Can we do a trial on the geotube before purchasing?



Yes, of course! We will make one small model bag for your trial. Small Geotube size is 50cmX50cm.
Based on the results of preliminary field testing with small PioTube,the appropriate amount of additives can be defined.



Product Description

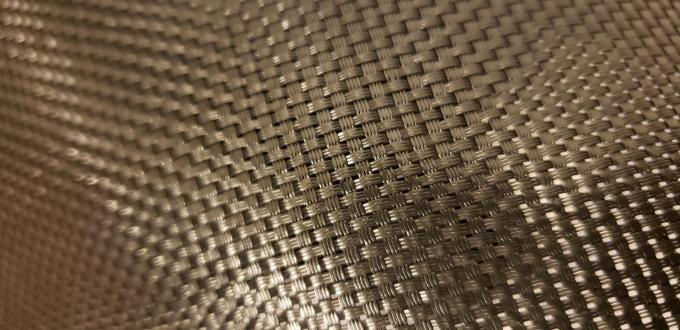

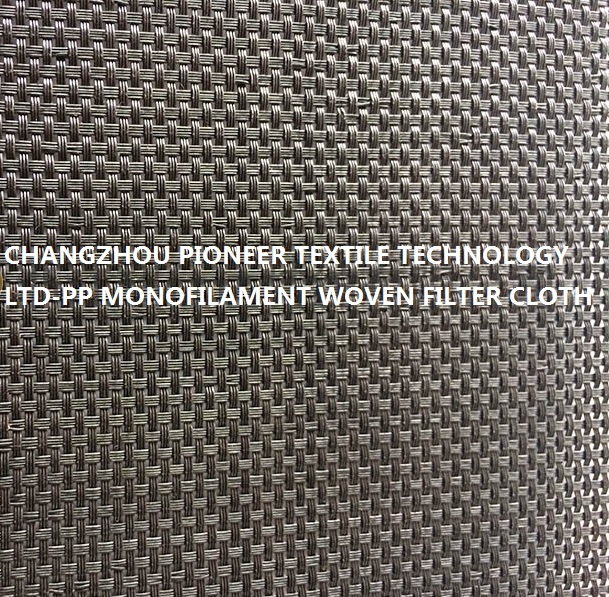

High flow woven dewatering filter bag was made of PIoneerTex's special industrial filter fabric, which is made of PP monofilament constructed in special texture.  Due to its special weaving construction, it can achieve big opening size and high flow rate.

PIONEERTEX was able to develop end manufacture any woven special technical fabric for filter or other application such as filtration, reinforcement or other base material.



CHANGZHOU PIONEER TEXTILE TECHNOLOGY LTD
NO.198,YUNHE ROAD,ZHONGLOU DISTRICT,CHANGZHOU CITY,CHINA.
E-mail: jiaojianf@vip.163.com
Stefan.jiao@ptt-china.com
www.ptt-china.com
Mob.: 0086 139 2497 8499

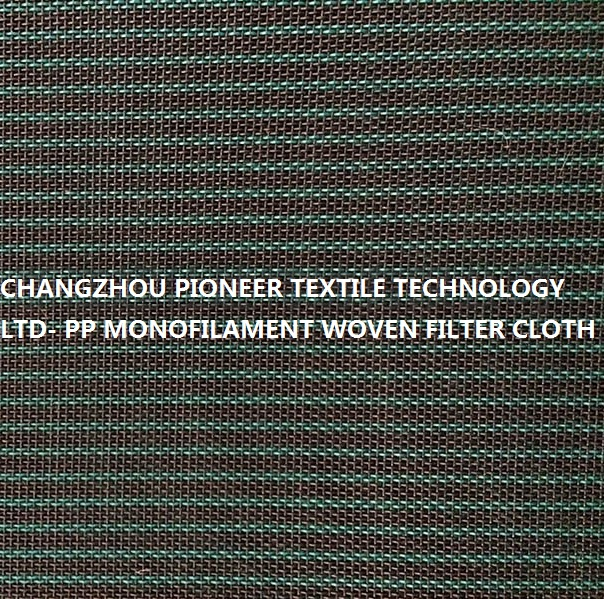

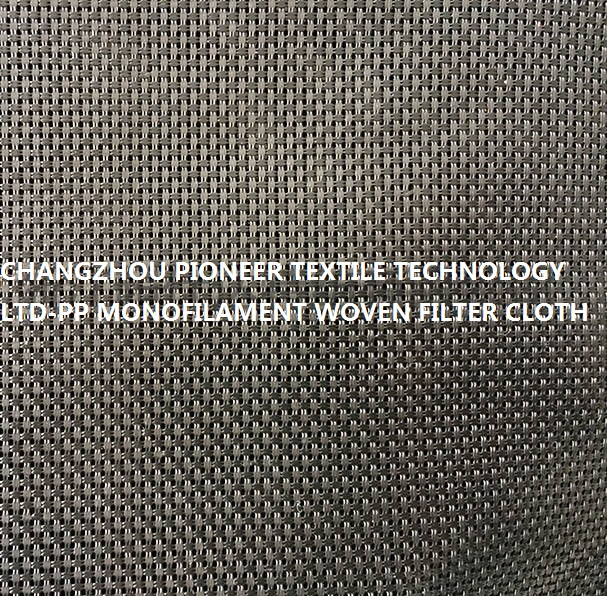

Material: PP Monofilament woven geotextile for Dewatering Bag.
Item	Test Method	Unit	Mean Value
			MD	XD
Mass Per unti area	EN ISO 10319	GSM	265
Tensile Strength	ASTM D 4595	KN/M	40	40
Elongation at break	ASTM D 4595	%	25	25
Brab Tensile Strength	ASTM D 4632	N	2200	2000
Tear Strength	ASTM D 4533	N	840
Puncture Strength	ASTM D 4533	N	900

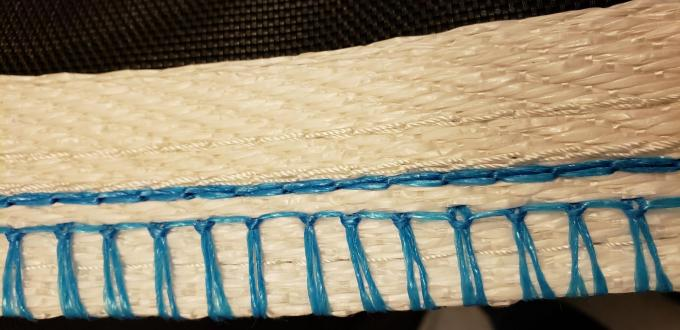

Seaming strength	ASTM D 4844	KN/M	20
Opening Size(O95)	ASTM D 4491	mm	0.5-0.8
Anti-UV(500hours)	ASTM D 4355	%	90
Re-mark:
1.MD means machine direciton; CD means cross machine direction.
2.Weight is within +/-10% tolerance.
3.Geotextile fabric is in BLACK color.

APPLICATIONS

Used in many civil engineering and building applications.

Designed to offer filtration, reinforcement, and separation functions.

Road, railway, and geobag applications. It acts as separator to prevent the intermixing of the different soil layer types, as filter to allow the flow of fluids while preventing the passage of soil particles and as reinforcement for weak soils to increase the load bearing capacity.

Filter wrap to granular drainage trenches

Erosion control layer under rock armour

Filter layer under artificial sports surface

All weather horse arenas

Filtration and separation layer in storm control system
