| Place of Origin: | China |
|---|---|
| Brand Name: | PioneerTEX |
| Certification: | ISO9001 |
| Model Number: | CCHS |
| Minimum Order Quantity: | 1 unit |
| Price: | 2000 USD |
| Packaging Details: | one unit packaging, Aluminum/Steel structure one unit packaging |
| Delivery Time: | 3-5weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | large |
| Quantity: | |
|---|---|
Concrete Impregnated Canvas
PIONEERTEX
6810999000
| Covering Material: | 650gsm PVC Coated Tarp Fabric And | Structure: | Aluminum/Steel Prefabricated Modular |
|---|---|---|---|
| Color: | Green,Grey And White | Life Span: | 30 Years |
| Function: | Anti-wind, Anti-noise And Anti-rain, Insulation | Size: | Made To Order |
| High Light: | 650gsm Concrete Impregnated Canvas,Flexbile Concrete Impregnated Canvas,ISO9001 concrete cloth shelter | ||

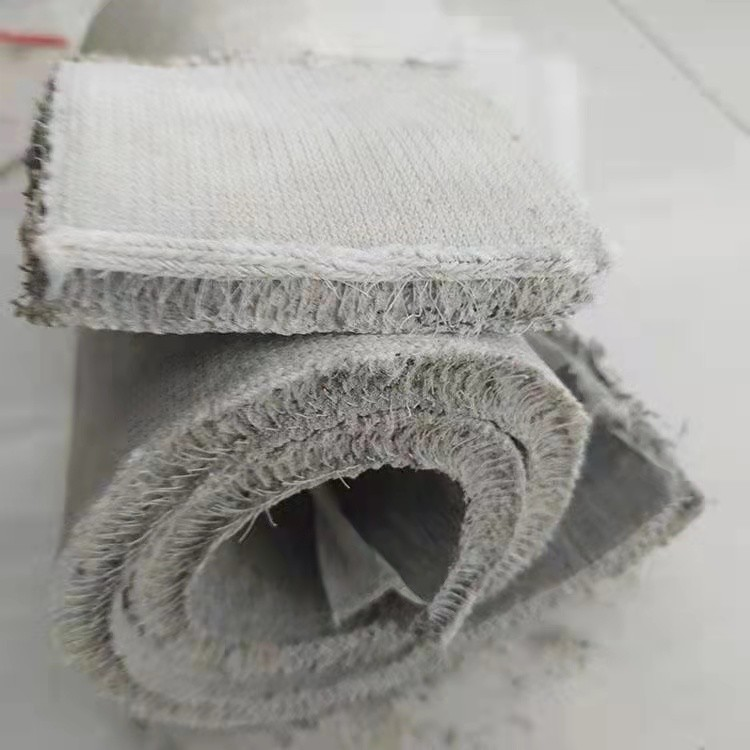

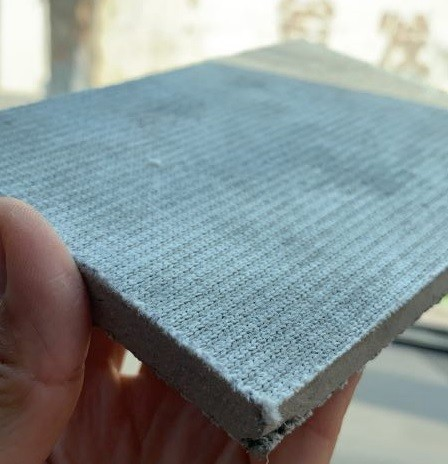

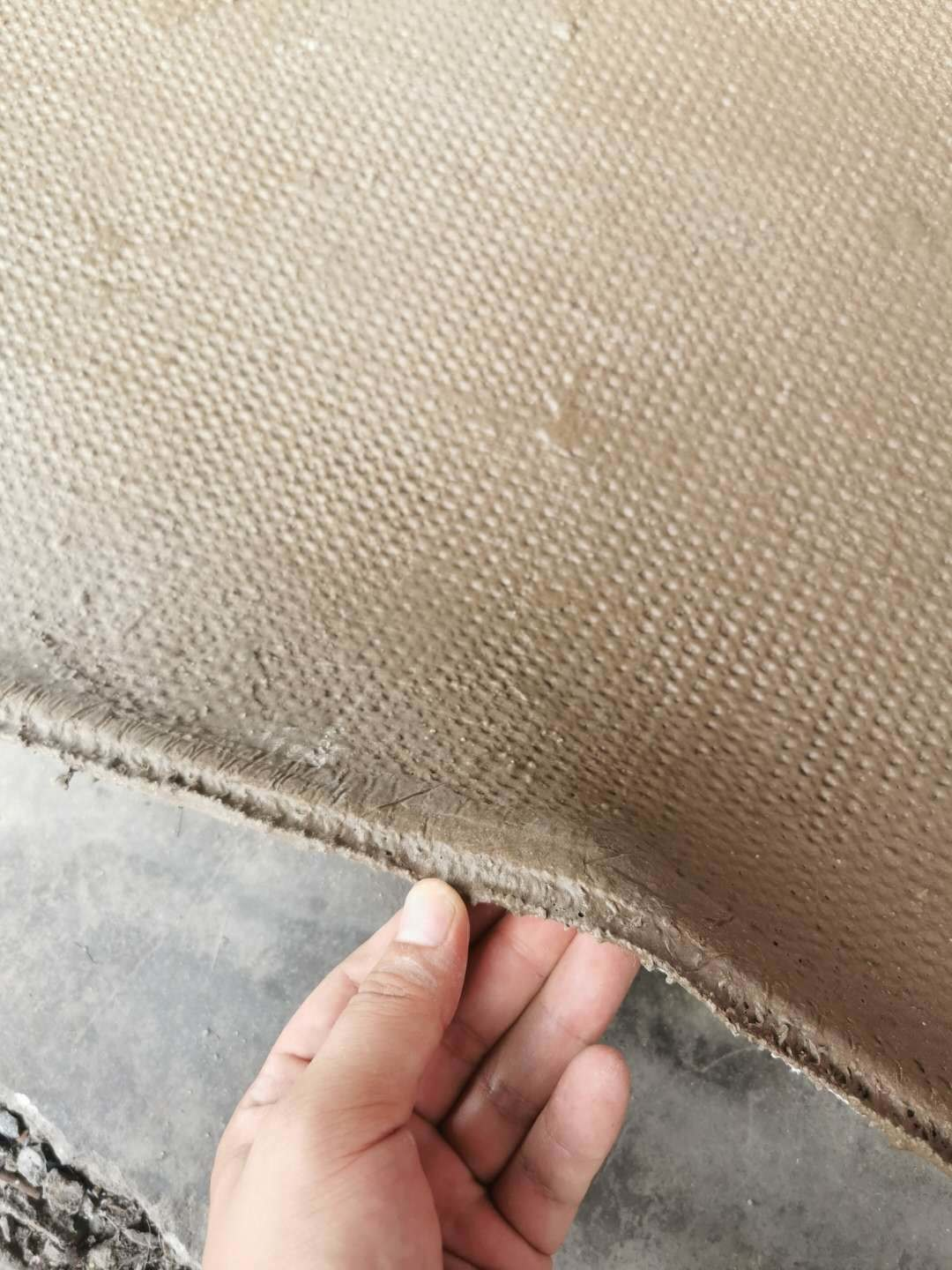

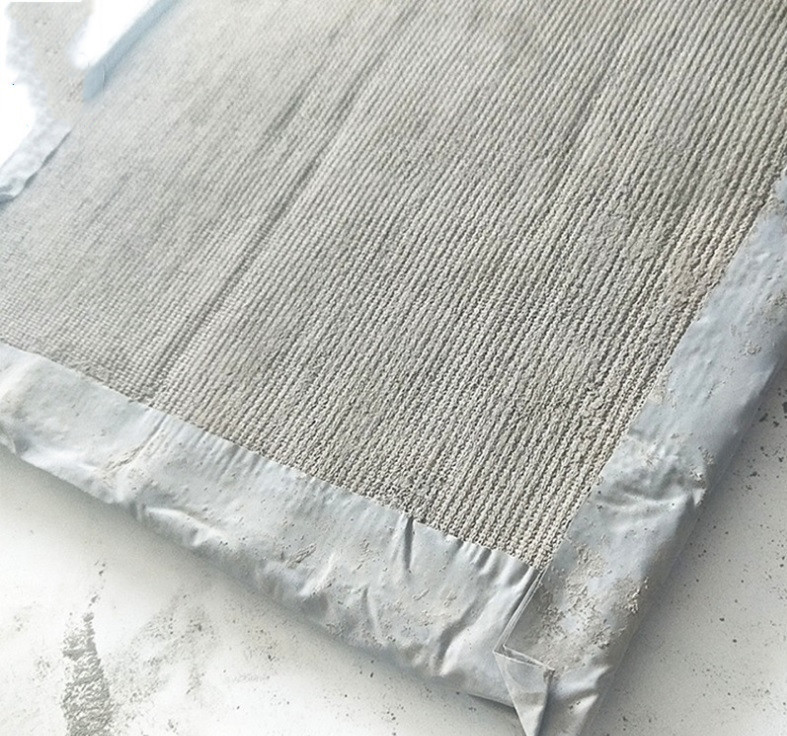

Cement Canvas(Concrete Impregnated Canvas) GCCM is a flexible and soft cement impregnated fabric, that hardens on hydration to form a thin,durable,water proof and fire retardant concrete layer. Essentially, it's concrete on a roll.
Cement Canvas GCCM allows concrete construction without the need for plant or mixing equipment. It's very easy, and just add water on the CC top face-canvas side.
Cement Canvas GCCM was made of 3D spacer fabric and Glass roving woven geotextile or HDPE geo-membrane. The specially formulated dry concrete powder mix will be reinforced by 3D spacer fabric in the middle, and covered by glass roving geotextile or water-proof HDPE geo-membrane.
Once set, the 3D spacer fabric will reinforce the concrete, prevent crack propagation and provide a safe plastic failure mode. The glass roving at the bottom will offer special protection on the CC, and offer higher tensile strength for composite.
HDPE geo-membrane backing at the bottom face of CC ensures the material is completely water proof. Cement Canvas GCCM is available in 4 thickness CC5, CC8, CC10 and CC13, which are 5,8,10 and 13mm thick respectively.
| ITEM | TEST METHOD | 5MM | 8MM | 13MM | |
| Flexural Strength (Final) | ASTM D8058 | 4.0MPa | 4.0MPa | 4.0MPa | |
| Compressive Strength | ASTM D8329 | 40Mpa | 50Mpa | 60Mpa | |
| Tensile Strength(unset) | ASTM D6768 | 8KN/M | |||
| Tensile Strength(set-final) | ASTM D4885 | 20KN/M | 25KN/M | 30KN/M | |
| Abasion(Max.value) | ASTM C1353 | 0.3MM/1000 cycles | |||
| REMARK: CC10 data sheet is between 8mm and 13mm. | |||||
| Covering Material: | 650gsm PVC Coated Tarp Fabric And | Structure: | Aluminum/Steel Prefabricated Modular |
|---|---|---|---|
| Color: | Green,Grey And White | Life Span: | 30 Years |
| Function: | Anti-wind, Anti-noise And Anti-rain, Insulation | Size: | Made To Order |
| High Light: | 650gsm Concrete Impregnated Canvas,Flexbile Concrete Impregnated Canvas,ISO9001 concrete cloth shelter | ||
Cement Canvas(Concrete Impregnated Canvas) GCCM is a flexible and soft cement impregnated fabric, that hardens on hydration to form a thin,durable,water proof and fire retardant concrete layer. Essentially, it's concrete on a roll.
Cement Canvas GCCM allows concrete construction without the need for plant or mixing equipment. It's very easy, and just add water on the CC top face-canvas side.
Cement Canvas GCCM was made of 3D spacer fabric and Glass roving woven geotextile or HDPE geo-membrane. The specially formulated dry concrete powder mix will be reinforced by 3D spacer fabric in the middle, and covered by glass roving geotextile or water-proof HDPE geo-membrane.
Once set, the 3D spacer fabric will reinforce the concrete, prevent crack propagation and provide a safe plastic failure mode. The glass roving at the bottom will offer special protection on the CC, and offer higher tensile strength for composite.
HDPE geo-membrane backing at the bottom face of CC ensures the material is completely water proof. Cement Canvas GCCM is available in 4 thickness CC5, CC8, CC10 and CC13, which are 5,8,10 and 13mm thick respectively.
| ITEM | TEST METHOD | 5MM | 8MM | 13MM | |
| Flexural Strength (Final) | ASTM D8058 | 4.0MPa | 4.0MPa | 4.0MPa | |
| Compressive Strength | ASTM D8329 | 40Mpa | 50Mpa | 60Mpa | |
| Tensile Strength(unset) | ASTM D6768 | 8KN/M | |||
| Tensile Strength(set-final) | ASTM D4885 | 20KN/M | 25KN/M | 30KN/M | |
| Abasion(Max.value) | ASTM C1353 | 0.3MM/1000 cycles | |||
| REMARK: CC10 data sheet is between 8mm and 13mm. | |||||
