| Place of Origin: | China |
|---|---|
| Brand Name: | PioneerTEX |
| Certification: | ISO9001 and ISO14001 |
| Model Number: | GCL5000 |
| Minimum Order Quantity: | 4000 sqm |
| Price: | 2.5-3.0 us$/sqm |
| Packaging Details: | PP WOVEN FABRIC OUTSIDE |
| Delivery Time: | 2-3WEEKS |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 2000 SQM/DAY |
| Color: | |
|---|---|
| Size: | |
| Quantity: | |
| Material: | Bentonite Sodium Granular 4500gsm | Nonwoven: | Polyester 220gsm |
|---|---|---|---|
| Woven: | PP Woven Geotextile 110gsm | Thickness: | 5-6mm |
| Weight: | 5000gsm | Permeability: | 1*10-14 |
| High Light: | Bentomat Clay Liner,Gcl Clay Liner,Geosynthetic Liners | ||

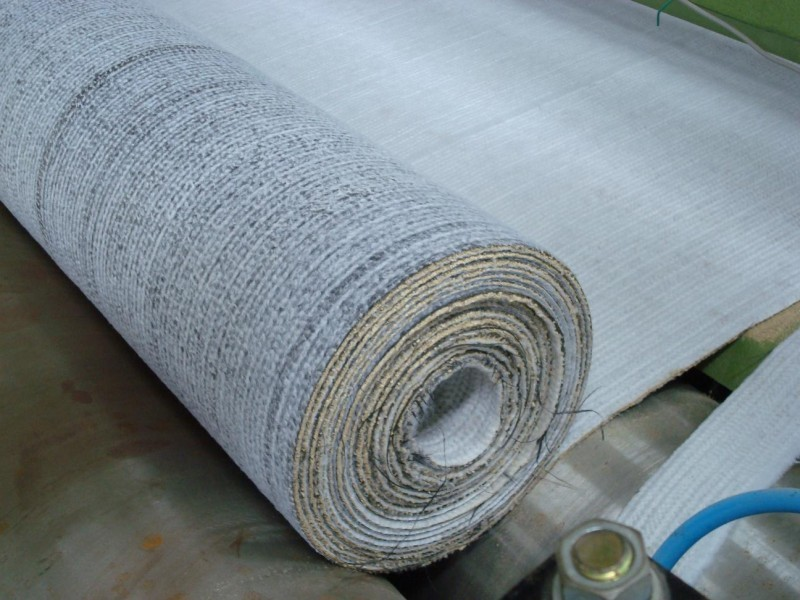

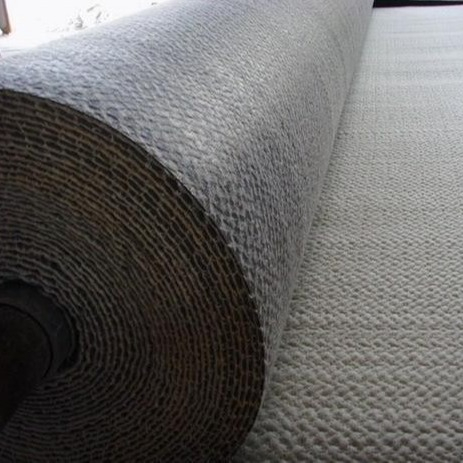

Geosynthetic Clay Liners ( GCL)-Bentonite Mat in poweded form with 0.2mm PE film backing for landfill waterproof project
DESCRIPTION
BENTONITE MAT, it's a line of multilayer membrane composed by:
One layer of polypropylene fabric (weft and warp) with exceptional tearing and mechanical resistance for the floor side.
inside by a non-woven fabric in PP saturated with nano grains of natural sodium Bentonite with high water absorption index.
In the front side a needled, micro punctured in order to allow partial extrusion of the Bentonitic gel. This side is impregnated with a 0,7 kg/sqm of miconized Bentonite.

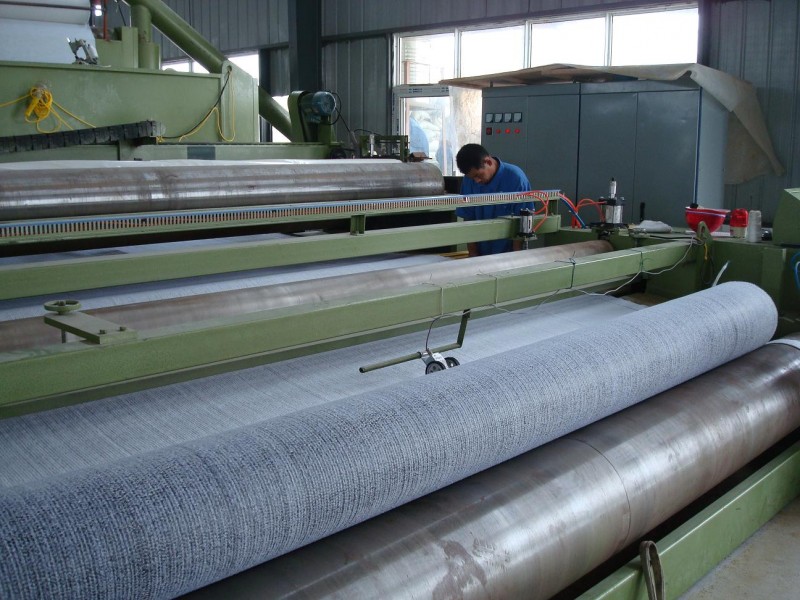

The three layers are needled together to give to Water Shield excellent weathering properties until grounding. This structure can effectively block the nano grains of Bentonite from movement.
The result of this exclusive manufacturing process is a waterproof membrane with autosealing properties, with excellent weathering resistance, perfect adherence to the upper structure, extremely high puncture resistance (suitable for difficult surfaces with emerging ridges and stones, not regulars, not plane, or earthwork performed by mechanicals vehicles).
BLACK PE FILM ON THE BACKING COULD BE 0.2 or 0.3MM.
Application:
BENTONITE MAT is used in suitable for intensive use in civil engineering, like building or road construction, where the maximum protection from water infiltration is needed. Even an irregular slope course don't affect at all the performance of Water Shield.
BENTONIT MAT is a versatile product, and can be adapted to different situations, but offer it's best for construction use and when the maximum resistance to traction and puncture resistance is needed. This thanks to the impregnation and use of double fabric (weft and warp) on the outer sides.
| PIONEERTEX GEOSYNTHETIC CLAY LINER (GCL) SPECIFICATION-GCL4500 | |||
| Property | Test Method | Unit | Value |
| Geotextile Layers | |||
| Cover Layer | |||
| Geotextile type | Polyester staple fibre needle-punched nonwoven | ||
| Mass per unit area | DIN EN 965 | g/m2 | >=220 |
| Carrier Layer | |||
| Geotextile type | Polypropylene woven | ||
| Mass per unit area | DIN EN 965 | g/m2 | >=110 |
| Bentonite Layer | |||
| Type | Natural Sodium Bentonite(Powder) | ||
| Mass per unit area | DIN EN 965 | g/m2 | >=4000 |
| Swell Index | ASTM D 5890 | ml/2g | >=24 |
| Water Content | DIN 18121 | % | <=15 |
| Geosynthetic Clay Liner | |||
| Mass per unit area | DIN EN 965 | g/m2 | >=4400 |
| Thickness | EN964-1 | mm | >=5 |
| Tensile Strength(MD&CD) | ASTM D4595 | KN/M | >=10 |
| Elongation at break(MD&CD) | ASTM D4595 | % | 10/5.0 |
| Peel Strength | EN ISO10319 | N/10cm | >=60 |
| Permeability (Hydraulic Conductivity) | ASTM-D-5887 | M/Sec. | <=9.9X10-11 |
GCL Advantages
Thanks to the impregnation, the joints are immediately sealed
The product is self sealing. The sodium Bentonite gcl can automatically repair the common structural damage
The product have high weathering resistance thanks to our superior packaging technology
The pose is allowed under any temperature
The uprightness infiltration is completely stopped immediately after the pose
The pose is fast, safe and easy. Non qualified workers can be conveniently use.
Plain surfaces (under pit):
Stretch a clean bed of lean concrete, free from holes and asperities
Deploy the rolls overcoming it on the joints for 10 cm, and lapel in necessary in the pit borders Nail the rolls to the lean concrete every 50 cm
GCL CS is an isolating, non-permeable product which is constructed of a GCL layer bonded to a geomembrane sheet.
| USES & FUNCTIONS | Thrace Group GCL CS is used in many civil engineering and building applications offering the function of containment. |
| FEATURES & BENEFITS | 1. An upgraded mechanical operating parameter. 2. Extreme toughness and durability. 3. A double lined system. 4. Puncture resistance. |
| APPLICATIONS | In landfills, canals & storage reservoirs, tank storage sites, tunnel & building seals, run-off basins, flat roofs, concrete piles and sheet piling, foundation and other subsurface structures. |
| PIONEERTEX Geomembrane Reinforced Bentonite Mat Composite Technical Data Sheet | ||||
| PTT Bentonite mat is a Reinforced GCL consisting of High Quality Natural Sodium Bentonite Powder | ||||
| between two a layer of High Quality Geo-textile, which are Needle Punched together and Laminated | ||||
| to a Thin Flexible Geo-membrane Liners. It's the premier water shield products for building,canal etc. | ||||
| Item | Unit | Test Method | MARV | |
| Bentonite Swell Index | ml/2g | ASTM D 5890 | >=20 | |
| Fluid Loss | ml | ASTM D 5891 | <=18 | |
| Bentonite Mass Area | g/m2 | ASTM D 5993 | >=4000 | |
| Peel Strength | N | ASTM D 4632 | >=55 | |
| Grab Strength | N | ASTM D 4632 | >=600 | |
| Permeability(D=100cm) | M/S | ASTM D 5887 | <=5.0E-14 | |
| Non-woven Geotextile Mass | g/m2 | ASTM D 5261 | >=180 | |
| Woven Geotextile | g/m2 | ASTM D 5261 | >=110 | |
| HDPE Geomembrane thickness | mm | N/A | >=0.1 | |

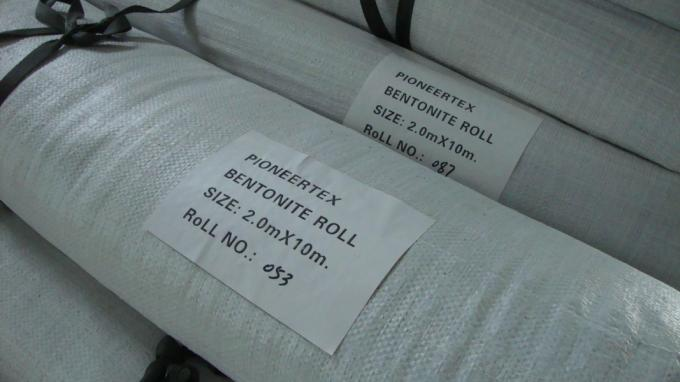

| Geomembrane Bentonite Mat Composite Packing Specifications: | ||||
| Roll Dimensions: | 5.8mts wide;70cm roll diameter; | |||
| Panel Size: | 5.8mts wide;30mts long; | |||
| Panel Area: | 17.4 m2 | |||
| Core Size: | 100mm ID | |||
| Packing: | High resistance black PE film; | |||
